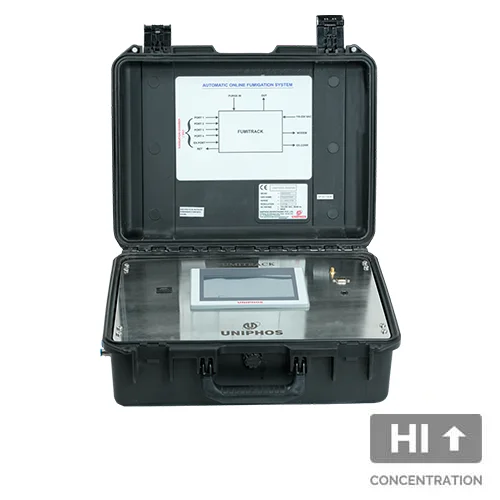

FumiTrack Multiport with Expansion Module

Uniphos Multiport FumiTrack is a portable, programmable, fully automatic multi-port gas monitor for the periodic monitoring of Phosphine during Fumigation. Housed in a tough Pelican Storm Case, it provides superior protection in tough environments. The multi-port FumiTrack is capable of periodic measurement from up to 4 ports at user-settable intervals. With the addition of an 8-port expansion pack, monitoring can be expanded from up to 12 ports. Equipped with the latest embedded and IoT technologies, the inbuilt GSM modem pushes data to the cloud and enables the user to remotely monitor gas concentration levels, with information like Cycle No., Date, Time, Site & Location. Once programmed, the FumiTrack will work automatically, without any human intervention, for the entire fumigation period, enabling the user to remotely monitor the fumigation from anywhere in the world.

  • Fully automatic multi-port gas monitor used for process control measurement
  • Interface: Colour TFT touch-screen
  • Range: PH3 0–2000 or 0–5000 ppm
  • Menu: Fully programmable – once set, can run multiple fumigation cycles without human intervention
  • Data Logging: Logs gas concentration with Cycle No., Date, Time, Site & Location to USB memory drive
  • Remote Connectivity: Data upload to the cloud using GSM technology
  • Gas Sampling: Inbuilt pump capable of drawing sample from up to 100 meters
  • Enclosure: Tough Pelican Storm Case – weatherproof and waterproof

Main Unit Specs

  • Gas Name: Phosphine
  • Concentration Range: 0 – 2000 ppm
  • Resolution: 1 ppm
  • Response Time (T90): Less than 30 seconds after gas concentration stabilizes in the sensor hood
  • Accuracy: ± 2% (depends on calibration gas & sampling system)
  • Operating Temperature: 0°C to +45°C (32°F to 113°F)
  • Operating Pressure: Ambient ± 10%
  • Gas Sampling: Sample Draw Type (with inbuilt pump)
  • Sampling Time: User settable
  • Purge Time: User settable
  • Data Logging: Available
  • Inbuilt Pump Flow Rate: 800 – 1000 ml/min
  • Power Supply: 110 – 230 V AC / 110 V AC, 50–60 Hz
  • Construction Material: Pelican Case

FumiTrack Expansion Module Specs

  • Gas Compatible: PH3
  • Gas Sampling: Sample Draw Type with 2 L/min suction capacity (up to 300 ft distance)
  • No. of Zones: 8 x inlet ports
  • Electronics: Fully automated system
  • Communication: RS485 (2-wire) Interface, Proprietary Protocol
  • Power Supply: 110–240 V AC, 50/60 Hz Inbuilt SMPS (+24V, +5V, -5V, GND)
  • Enclosure: Robust, weather-proof Pelican Storm Case
  • Operating Temperature: -10°C to +50°C
  • Operating Pressure: Ambient ± 10%
  • Weight: Approx. 2 kg
  • Dimensions: 487 × 386 × 185 mm
