KwikSense Lite

Enquiry Now

The Uniphos KwikSense Lite Transmitter offers users a high quality, low-cost solution to their gas monitoring needs. It can be installed in potentially explosive atmospheres, as the transmitter is housed in an explosion-proof (“Exd” Certified) enclosure.

KwikSense Lite comes with a pre-calibrated sensor for easy installation. It provides the user with industry-leading plug-n-play sensor technology for the gas of choice. This allows rapid field replacement of the sensor with a new pre-calibrated one, eliminating the need for field calibration. It comes with an Industry Standard 4-20 mA analog output.

The KwikSense Lite has numerous international certifications including ATEX & IECEx

  • Oil, Gas and Petroleum Industry
  • Petrochemical Industry
  • Chemical Industry
  • Pharmaceutical Industry
  • Marine Industry
  • Fertilizer Industry
  • Nuclear Industry
  • Iron and Steel Industry

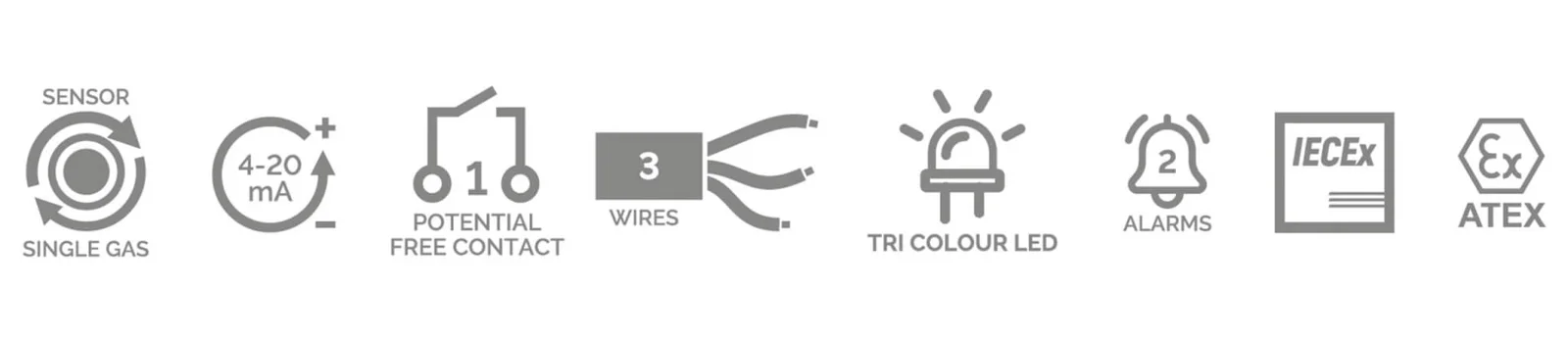

  • Industry standard 4-20 mA
  • Swappable Sensor for single gas
  • One Potential free relay contact
  • Temperature Class T4: -40o to +85o Celsius
  • Non-Intrusive Calibration
  • Certification – ATEX, IECEX.
  • Fully equipped with all Accessories
  • Sensor technology: EC/PEL/NDIR/PID/SS
  • Operating Voltage: 18V to 30 VDC
  • System Type: µController based instrument (non intrusive calibration)
  • Display: 8 x 2 OLED Display
  • Sampling type: Diffusion
  • Sensor: Fixed Single gas sensor
  • LED’s: Tri-Colour LED
  • Alarms: Two user settable alarms
  • Output: 4-20 mA as per concentration*
  • Relays: 1-potential free contact (optional)
  • Load resistance:  600 Ω (max)
  • Power Consumption: < 3 W
  • Enclosure: Flameproof – Cast Alluminium alloy/SS-316
  • Ingress protection: IP66
  • Dimensions: Approx Diameter: 150 mm; Height: 110 mm
  • Wire configuration: 3 wires(Supply, 4-20 mA & Ground)
  • Interface: Calibration & configuration via Non-intrusive magnetic wand
  • Operating Temperature: -40° to 65 ° C
  • Operating Pressure: Ambient + 10 %
  • Operating Humidity: 0-95 %RH (non-condensing)
  • Cable entries: ½” NPT (2 entries)
  • Certifications: ATEX/IECEx + PESO CMFRI
  • Weight: Cast Aluminium Alloy:2.5 kg (Approx.) SS 316: 5.2 kg (Approx.)
Gas Name Gas Code No. Ordering Code Range Resolution Sensor Technology Enquiry Sheet
Acetylene 099C SSA0099C 0 – 100% lel 1% lel Pellister Enquiry
Ammonia 082A SSA0082A 0 – 100 ppm 1 ppm EC Enquiry
Ammonia 082B SSA0082B 0 – 1000 ppm 1 ppm EC Enquiry
Bromine* 061A SS00061A 0 – 20 ppm 0.1 ppm EC Enquiry
Butanol 099D SSA0099D 0 – 100% lel 1% lel Pellister Enquiry
Carbon Dioxide 025A SSA0025A 0 – 5% v/v. 0.01% v/v. NDIR Enquiry
Carbon Dioxide 025B SSA0025B 0 – 100% v/v. 1% v/v. NDIR Enquiry
Carbon disulphide 021A SSA0021A 0 – 50 ppm 0.1 ppm PID Enquiry
Carbon Monoxide 020A SSA0020A 0 – 1000 ppm 1 ppm EC Enquiry
Chlorine 060A SSA0060A 0 – 20 ppm 0.1 ppm EC Enquiry
Chlorine 060B SSA0060B 0 – 10 ppm 0.1 ppm EC Enquiry
ETO** 083A SSA0083A 0 – 20 ppm 0.1 ppm EC Enquiry
ETO** 083B SSA0083B 0 – 100 ppm 1 ppm EC Enquiry
Formaldehyde 098A SS00098A 0 – 10 ppm 0.1 ppm EC Enquiry
HC (Methane) 099A SSA0099A 0 – 100% lel 1% lel Pellister Enquiry
HC (Methane) 099G SSA0099G 500 – 10000 ppm 10 ppm Solid State Enquiry
Hydrogen (IIC) 090C SSA0090C 0 – 100% lel 1% lel Pellister Enquiry
Hydrogen (IIC) 090A SSA0090A 0 – 1000 ppm 1 ppm EC Enquiry
Hydrogen (IIC) 090B SSA0090B 0 – 100% lel 1% lel EC Enquiry
Hydro Carbon 099H SSA0099H 50 – 1000 ppm 1 ppm Solid State Enquiry
Hydrogen Chloride* 070A SS00070A 0 – 20 ppm 0.1 ppm EC Enquiry
Hydrogen Cyanide 075A SSA0075A 0 – 100 ppm 1 ppm EC Enquiry
Hydrogen Fluoride* 072A SS00072A 0 – 10 ppm 0.1 ppm EC Enquiry
Hydrogen Sulphide 030A SSA0030A 0 – 100 ppm 1 ppm EC Enquiry
Hydrogen Sulphide 030B SSA0030B 0 – 20 ppm 1 ppm EC Enquiry
LPG 099B SSA0099B 0 – 100% lel 1% lel Pellister Enquiry
Methane 099E SSA0099E 0 – 100% lel 1% lel NDIR Enquiry
Methane 099F SSA0099F 0 – 100% v/v. 1% v/v. NDIR Enquiry
Mercaptan* 035A SS00035A 0 – 20 ppm 0.1 ppm EC Enquiry
Methanol** XXA – 0 – 100 ppm 1 ppm EC Enquiry
Nitrogen Dioxide 081A SS00081A 0 – 20 ppm 0.1 ppm EC Enquiry
Oxygen 010A SSA0010A 0 – 25% v/v. 0.1% v/v. EC Enquiry
Ozone* 015A SS00015A 0 – 1 ppm 0.01 ppm EC Enquiry
PCl3* 071A SS00071A 0 – 10 ppm 1 ppm EC Enquiry
Phosgene* 055A SS00055A 0 – 1 ppm 0.01 ppm EC Enquiry
Phosphine 050A SS00050A 0 – 10 ppm 0.01 ppm EC Enquiry
POCl3* 073A SS00073A 0 – 20 ppm 1 ppm EC Enquiry
Propane 099J SSA0099J 0 – 100% lel 1% lel Pellister Enquiry
Propane 099I SSA0099I 0 – 100% lel 1% lel NDIR Enquiry
Sulphur Dioxide 040A SSA0040A 0 – 20 ppm 0.1 ppm EC Enquiry
Vinyl Chloride (Vinyl Chloro Monomer)* 022A SSA0022A 0 – 100 ppm 1 ppm EC Enquiry

EC: Electrochemical • Pel: Pellister • NDIR: Non-Dispersive Infra-Red • PID: Photo Ionization Detection

* Kindly consult factory for more information
