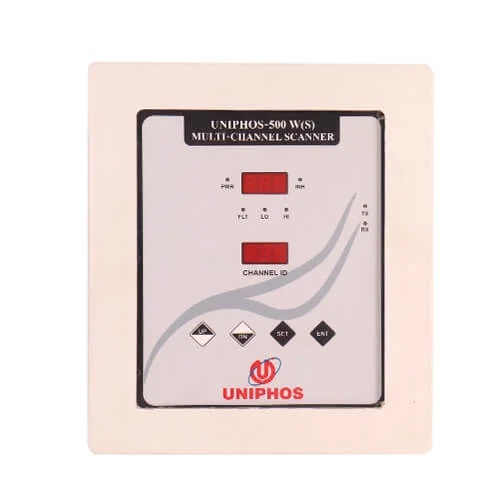

Uniphos 500 WS Eight Channel Scanner

The Uniphos 500 WS eight channel scanner provides an economical way to monitor up to 8 gas transmitters. The Hi-viz LED display provides a clear reading of the gas concentration even from a distance or in low light situations. The two-user settable alarm set points per channel and 3 common relay contacts corresponding to each alarm condition provide a plethora of connection options

  • Refineries
  • Petrochemical Plants
  • Pharmaceutical Plants
  • Power Industries
  • Marine Industries
  • Chemical Plants
  • Microprocessor based system
  • Hi-viz LED display sequentially displays gas levels of all 8 channels
  • 3-common relays (viz. Fault, Warn & Alarm) for all channels
  • Display: 3-digit 7 segment LED display
  • No. of Channels: 8
  • Input Signal: Industrial Standard 4-20 mA analog signal
  • Alarms: 3 Potential free relays for LOW, HIGH & FLT alarm
  • Input Power: 110-230 V AC +/- 10 %, 50/60 Hz
  • Output Power: 24VDC (for transmitters only)
  • Function Keys: UP, DOWN, SET & ENTER Keys
  • Temperature: 0 to 50 °C
  • Pressure: Ambient +/- 10%
  • Enclosure: FRP/FLP
  • Weight:  FRP: 6 kg approx.
                FLP: 17 kg approx.
  • Dimensions:  FRP: L=300mm, W=175mm, D=350mm
                            FLP: L=245mm, W=200mm, D=425mm
