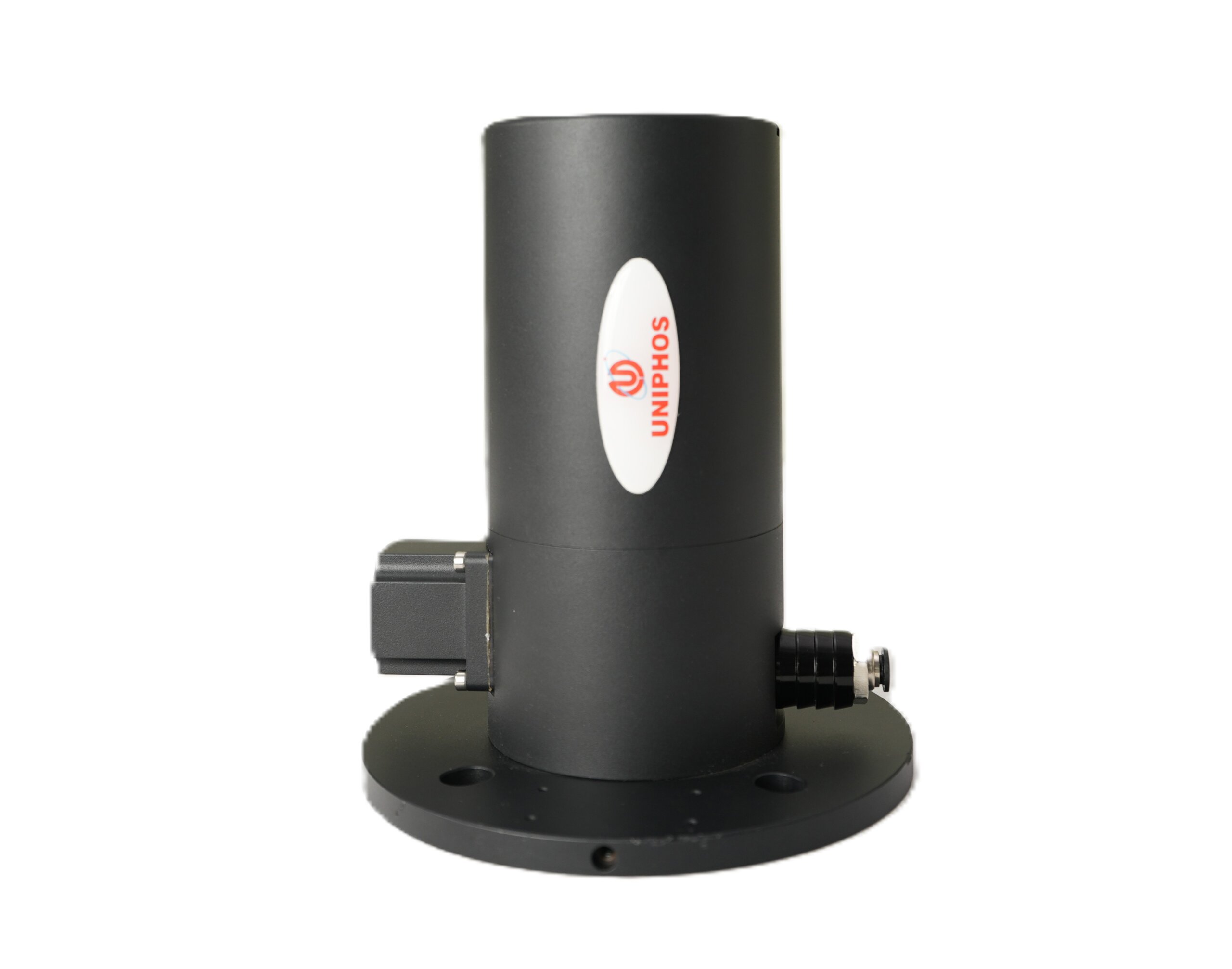

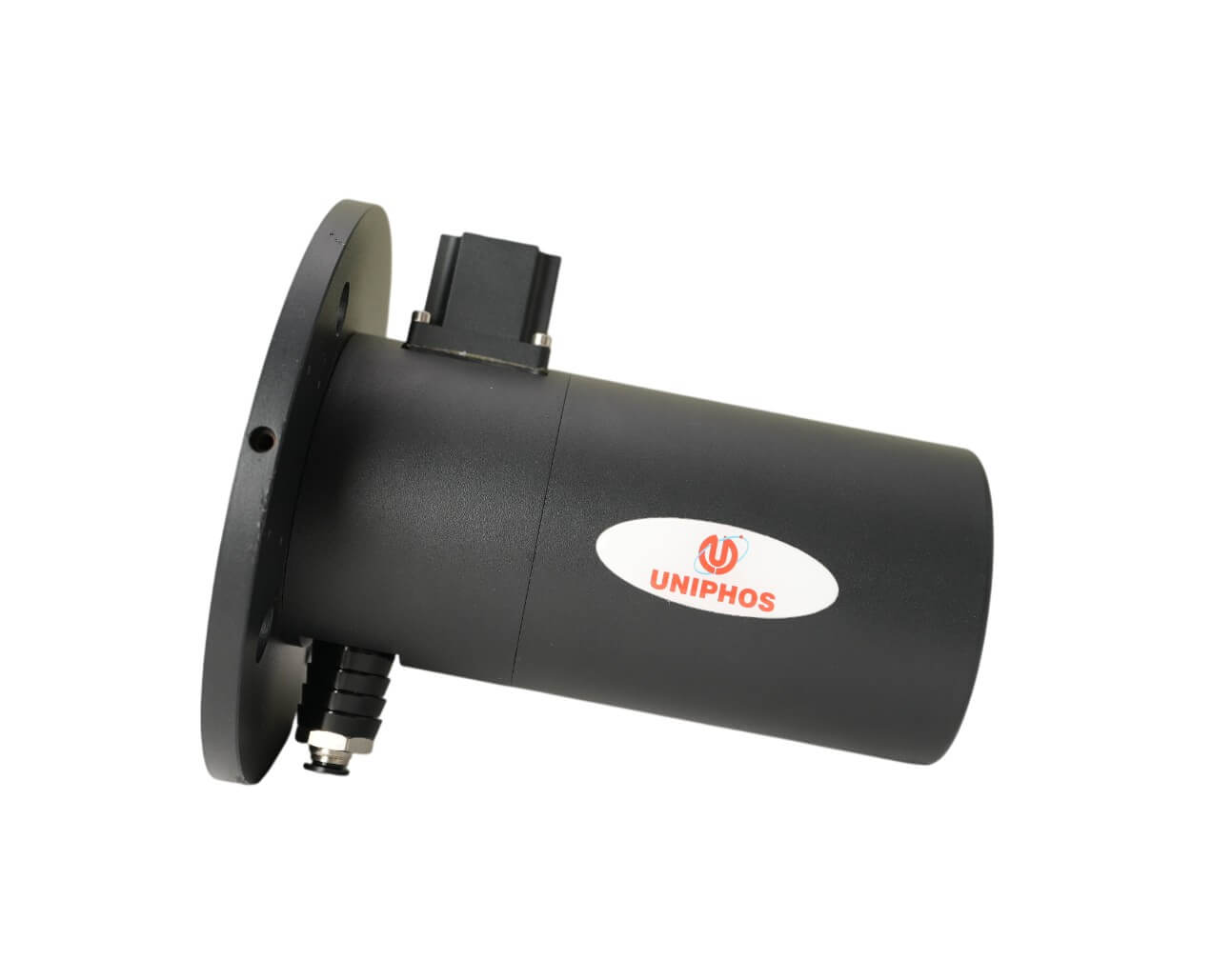

LD100 Series
Dust Analyzer
The LD100 Series Continuous Dust Analyzer is an advanced in-situ laser backscatter dust monitoring instrument designed for continuous measurement of particulate concentration in industrial flue gas emissions. The instrument is specifically designed for harsh industrial environments and provides reliable real-time dust concentration monitoring for CEMS applications. Its robust design allows operation in environments with wind, rain, dust, and varying temperatures.Â
The LD100 Series uses the Laser Backscatter measurement principle. A highly stable laser source emits a beam into the flue gas stream. Suspended particulate matter scatters the laser light, and the intensity of the reflected signal is proportional to the dust concentration. Advanced digital signal processing algorithms are used to calculate and provide accurate dust concentration measurements in real time.
- Boiler Stack
- Thermo pack
- Incinerator
- Air filtration processes such as electrostatic precipitators
- Other industrial applications with larger particle sizes and relatively high dust loading
- Laser Backscatter measurement technology
- Continuous real-time dust concentration monitoring
- Suitable for harsh industrial environments
- IP66 protection grade
- In-situ calibration capability
- Analog 4-20 mA output
- Easy installation and maintenance
- Purging system for optical window protection
- Measuring Principle: Laser Backscatter measurement principle
- Measuring Range: 1000 mg/mÂł
- Wavelength: 650 ± 20 nm
- Response Time: ≤ 10 seconds
- Flue Diameter: 0.7 – 20 m (Can be adjustable)
- Protection Class: IP66
- Power Supply (LD100): 12 – 24 VDC
- Analog Output: 4 – 20 mA
- Operating Temperature: -20°C to +50°C
- Zero Drift: ±2% F.S./24 h
- Range Drift: ±2% F.S./24 h
- Indication Error: ±15% (Weighing Method)
