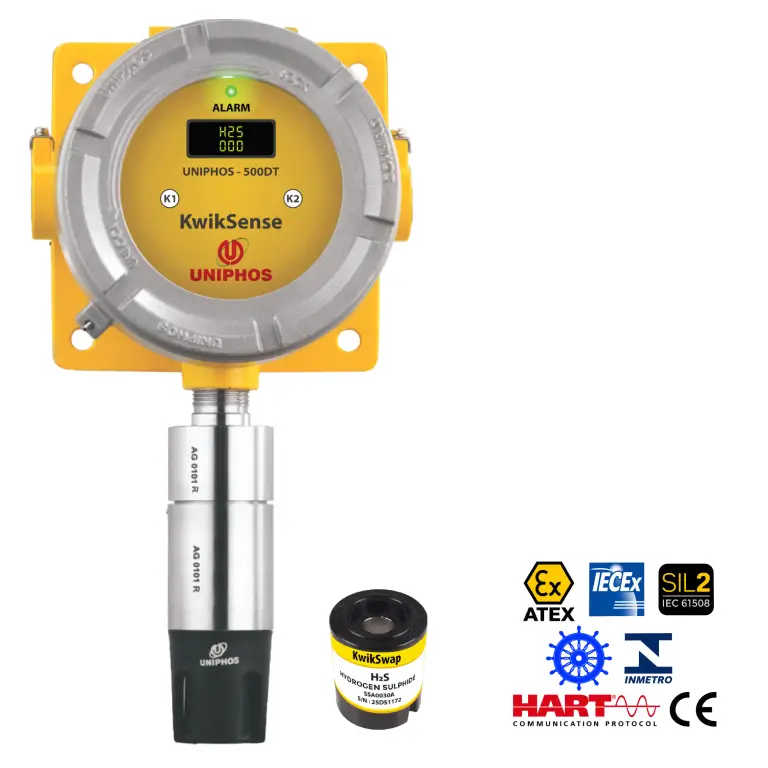

KwikSense Smart Digital Gas Transmitter

The Uniphos KwikSense Smart Digital Gas Transmitter is a universal gas transmitter capable of detecting a wide range of toxic and flammable gases that may be present in industrial process. Smart Sensor in the transmitter enable us to swap them between any Sensor Technology. It is a field mounted device which is compatible with all Uniphos Smart Gas Sensors and is suitable for the detection and continuous monitoring of hazardous gas leaks in your working site.

Our groundbreaking Smart Sensor Technology, with Transportable Calibration, allows quick sensor changes with pre-calibrated gas sensors, saving time and money. Also, the non-intrusive calibration allows customer to perform calibration in the hazardous areas without opening the transmitters, thus reducing the downtime of calibration.

It comes with an RS-485 MODBUS-RTU digital output signal that can be connected to any suitable control system viz. Uniphos controller, DCS, PLC, etc. It also provides an industry standard 4-20 mA analog output. HART protocol can also be provided in the transmitter.

The KwikSense Smart Digital Gas Transmitter has numerous international certifications including ATEX, IECEx, MED and SIL2.

Applications

Oil, Gas and Petroleum Industry
Petrochemical Industry
Chemical Industry
Pharmaceutical Industry
Marine Industry
Fertilizer Industry
Nuclear Industry
Iron and Steel Industry

Features

A True Universal Transmitter
Industry standard 4-20 mA analog output with Digital communication on MODBUS over RS 485
Pre-Calibrated Smart Sensor capable of swapping between any sensor technology
Non-Intrusive calibration with magnetic wand
Certification – ATEX, IECEX, SIL2 ,InMetro, MED
3 configurable on-board potential free relay contact
Temperature Class T4: -40^o to +85^o Celsius
Bright OLED display

Specifications

Sensor technology: EC/PEL/NDIR/PID/SS
Operating Voltage: 18V to 30 VDC
System Type: µController based instrument (non intrusive calibration)
Display: 8 x 2 OLED Display
Sampling type: Diffusion
Sensor: Swappable Smart Sensor
LED’s: Tri-Colour LED
Alarms: Two user settable alarms
Output: RS-485 MODBUS/ 4-20mA Current
Relays: 3-potential free contacts
Load resistance: 600 Ω (max)
Power Consumption: < 3 W
Enclosure: Flameproof – Cast Alluminium alloy/SS-316
Ingress protection: IP66
Dimensions: Approx Diameter: 150 mm; Height: 110 mm
Wire configuration: 3/4 wires
Interface: Calibration & configuration via Non-intrusive magnetic wand
Operating Temperature: -40° to 65 ° C
Operating Pressure: Ambient + 10 %
Operating Humidity: 0-95 %RH (non-condensing)
Cable entries: ½” NPT (2 entries)
Certifications: ATEX/IECEx + PESO, CMFRI, SIL, MED, InMetro
Weight: Cast Aluminium Alloy: 2.5 kg (Approx.)

Gas List

Gas Name	Gas Code	Odering Code	Range	Resolution	Sensor Technology	Enquiry
Acetylene	099C	SSA0099C	0 – 100% lel	1% lel	Pellister	Enquiry
Ammonia	082A	SSA0082A	0 – 100 ppm	1 ppm	EC	Enquiry
Ammonia	082B	SSA0082B	0 – 1000 ppm	1 ppm	EC	Enquiry
Bromine*	061A	SS00061A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Butanol	099D	SSA0099D	0 – 100% lel	1% lel	Pellister	Enquiry
Carbon Dioxide	025A	SSA0025A	0 – 5% v/v.	0.01% v/v.	NDIR	Enquiry
Carbon Dioxide	025B	SSA0025B	0 – 100% v/v.	1% v/v.	NDIR	Enquiry
Carbon disulphide	021A	SSA0021A	0 – 50 ppm	0.1 ppm	PID	Enquiry
Carbon Monoxide	020A	SSA0020A	0 – 1000 ppm	1 ppm	EC	Enquiry
Chlorine	060A	SSA0060A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Chlorine	060B	SSA0060B	0-10 ppm	0.1 ppm	EC	Enquiry
ETO**	083A	SSA0083A	0 – 20 ppm	0.1 ppm	EC	Enquiry
ETO**	083B	SSA0083B	0 – 100 ppm	1 ppm	EC	Enquiry
Formaldehyde	098A	SS00098A	0 – 10 ppm	0.1 ppm	EC	Enquiry
HC (Methane)	099A	SSA0099A	0 – 100% lel	1% lel	Pellister	Enquiry
HC (Methane)	099G	SSA0099G	500 – 10000 ppm	10 ppm	Solid State	Enquiry
Hydrogen (IIC)	090C	SSA0090C	0 – 100% lel	1% lel	Pellister	Enquiry
Hydrogen (IIC)	090A	SSA0090A	0 – 1000 ppm	1 ppm	EC	Enquiry
Hydrogen (IIC)	090B	SSA0090B	0 – 100% lel	1% lel	EC	Enquiry
Hydro Carbon	099H	SSA0099H	50 – 1000 ppm	1 ppm	Solid State	Enquiry
Hydrogen Chloride*	070A	SS00070A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Hydrogen Cyanide	075A	SSA0075A	0 – 100 ppm	1 ppm	EC	Enquiry
Hydrogen Fluoride*	072A	SS00072A	0 – 10 ppm	0.1 ppm	EC	Enquiry
Hydrogen Sulphide	030A	SSA0030A	0 – 100 ppm	1 ppm	EC	Enquiry
Hydrogen Sulphide	030B	SSA0030B	0-20 ppm	1 ppm	EC	Enquiry
LPG	099B	SSA0099B	0 – 100% lel	1% lel	Pellister	Enquiry
Methane	099E	SSA0099E	0 – 100% lel	1% lel	NDIR	Enquiry
Methane	099F	SSA0099F	0 – 100% v/v.	1% v/v.	NDIR	Enquiry
Mercaptan*	035A	SS00035A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Methanol**	XXA	–	0 – 100 ppm	1 ppm	EC	Enquiry
Nitrogen Dioxide	081A	SS00081A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Oxygen	010A	SSA0010A	0 – 25% v/v.	0.1% v/v.	EC	Enquiry
Ozone*	015A	SS00015A	0-1 ppm	0.01 ppm	EC	Enquiry
PCl3*	071A	SS00071A	0-10 ppm	1 ppm	EC	Enquiry
Phosgene*	055A	SS00055A	0 – 1 ppm	0.01 ppm	EC	Enquiry
Phosphine	050A	SS00050A	0 – 10 ppm	0.01 ppm	EC	Enquiry
POCl3*	073A	SS00073A	0-20 ppm	1 ppm	EC	Enquiry
Propane	099J	SSA0099J	0 – 100% lel	1% lel	Pellister	Enquiry
Propane	099I	SSA0099I	0 – 100% lel	1% lel	NDIR	Enquiry
Sulphur Dioxide	040A	SSA0040A	0 – 20 ppm	0.1 ppm	EC	Enquiry
Vinyl Chloride (Vinyl Chloro Monomer)*	022A	SSA0022A	0 – 100 ppm	1 ppm	EC	Enquiry
VOC	100A	SSA0100A	0 – 1000 ppm	1 ppm	PID	Enquiry
VOC	100B	SSA0100B	0 – 40 ppm	0.1 ppm	PID	Enquiry
VOC (Benzene)	100C	SSA0100C	0-20 ppm	0.1 ppm	PID	Enquiry

EC: Electrochemical • Pel: Pellistor • NDIR: Non-Dispersive Infra-Red • PID: Photo Ionization Detection

* Kindly consult factory for more information
