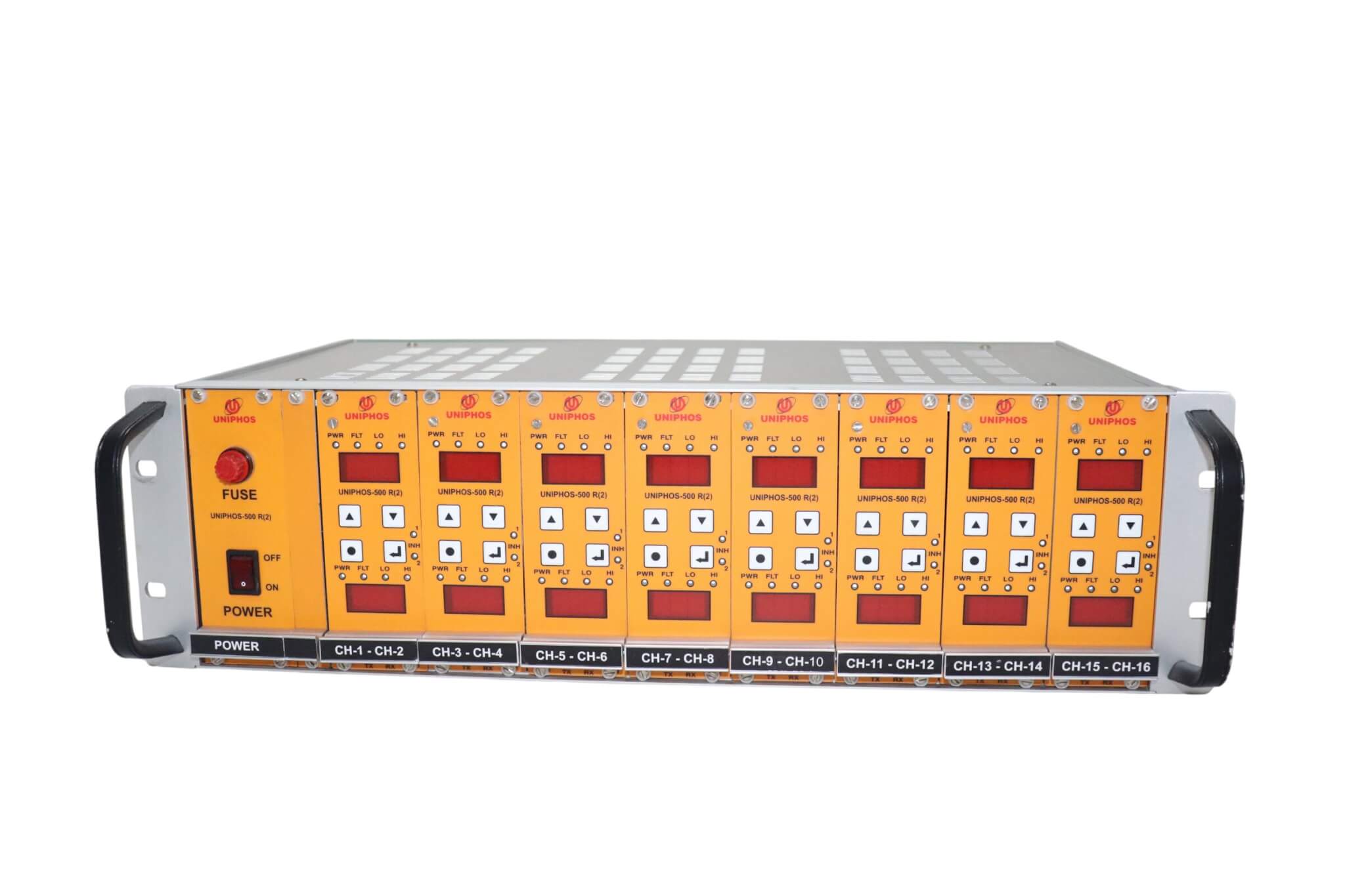

Uniphos 500 R2 Multichannel Rack Mountable Controller

Enquire Now

The building block design of the Uniphos 500 R2 provides the flexibility to build a system as small as 2 channels or as large as 16 channels. The Controller, apart from powering the transmitters, also provides a real time digital display of the gas concentrations, a variety of status alarms and the facility to transfer data to a computer.

Application

  • Refineries
  • Petrochemical Plants
  • Pharmaceutical Plants
  • Power Industries
  • Marine Industries
  • Chemical Plants

Features

  • Microprocessor based system with inbuilt self-test facility
  • 2 user settable alarm set points
  • Three Relay Contacts per transmitter
  • Hi-viz LED display
  • Compatible with 4-20mA inputs from both 2-wire and 3-wire gas transmitters
  • Online computer interfacing facility

Specifications

  • Display: 3-digit 7 segment LED display per channel
  • No. of Channels: 16 (Expandable in multiples of two)
  • Channels/Fascia Module:
  • Input Signal: Industrial Standard 4-20 mA analog signal
  • Output Signal: 4-20 mA Loop back signal
  • Alarms: 3 potential free relays per channels for Low, High and Fault Alarm
  • Data Connectivity: Data connectivity option to PC (GUI Optional)
  • Input Power: 110V AC / 230V AC; 50/60Hz
  • Output Power: 24VDC (for transmitters only)
  • Temperature: 0 to 50 °C
  • Pressure: Ambient +/- 10%
  • Enclosure: Al
  • Weight: 6.5 kg approx.
  • Dimensions: L=425mm, W=200mm, H=245mm
