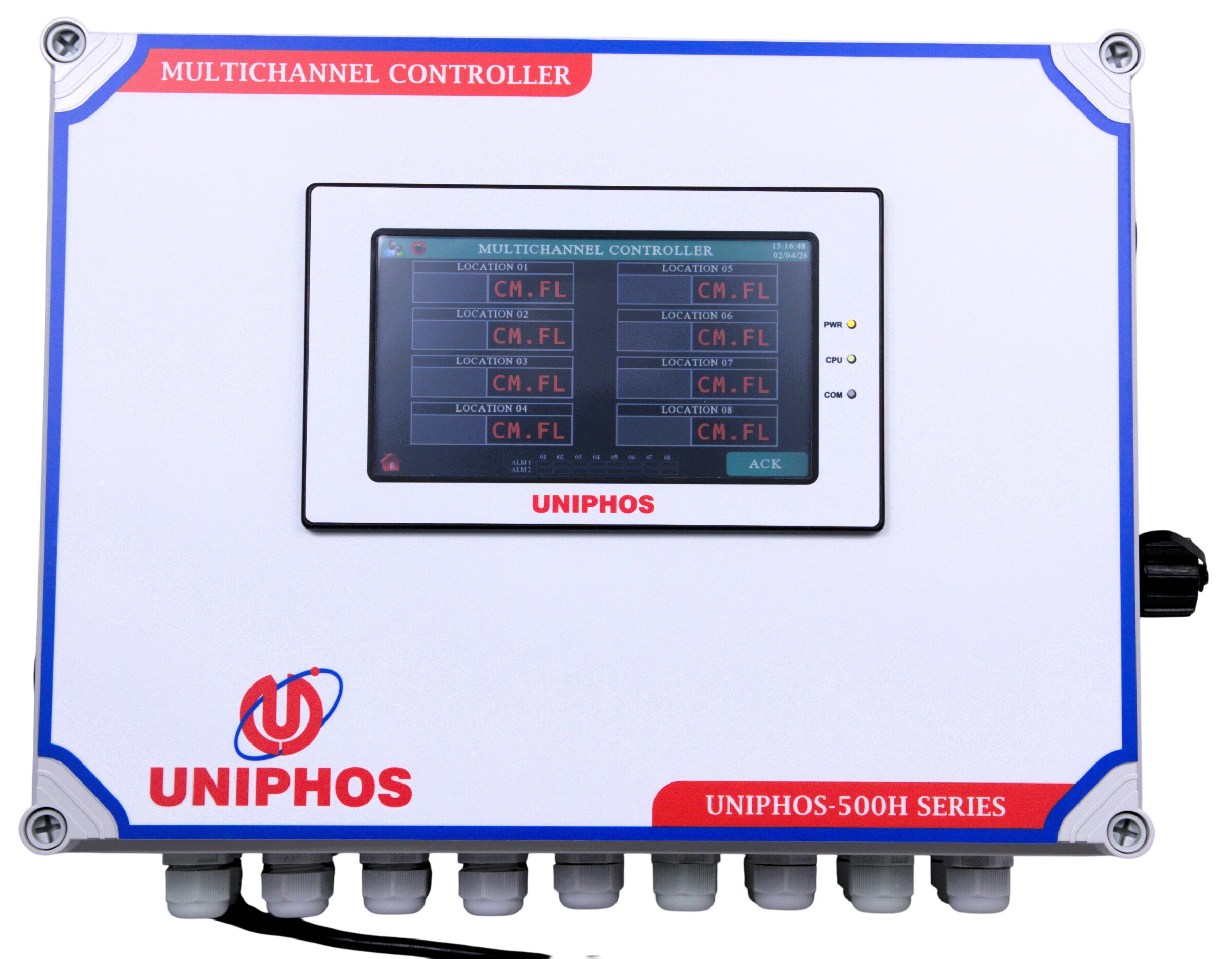

Uniphos 500 H(16) Multi Channel controller with HMI

Enquire Now

The Uniphos 500 H(16) is an adaptable, compact MODBUS based controller which can connect up to 8 to 16 numbers of KwikSense Gas Transmitters. It comes in 2 variants – 8 channel and 16 channels. Being a Modbus Scanner, it receives data in MODBUS RTU format from the digital gas transmitters and displays the required output on its screen. Each channel in the controller is user settable for alarms, tags etc. The Uniphos 500 H(16) has 3 common potential-free relay contacts to control alarms or any other equipment. The on-board data logging allows easy access to historical data via a USB interface.

Applications

  • Refineries
  • Petrochemical Plants
  • Pharmaceutical Plants
  • Power Industries
  • Marine Industries
  • Chemical Plants

Features

  • 7’’ TFT, Touchscreen HMI display
  • 3 Potential free relays for all channel
  • Compatible with industrial Standard RS-485, 2 Wire over MODBUS RTU Protocol
  • USB Host with an option to export data to a USB stick in .csv format

Specifications

  • Display: 7’’ TFT, Touchscreen HMI
  • No. of Channels: 8/16
  • Screen Scrolling: Auto/Manual
  • Remote Panel Supported: Yes*
  • Input Signal: Industrial Standard RS-485, 2 Wire over MODBUS RTU Protocol
  • Output Signal: MODBUS RTU Slave over RS-485, 2 Wire
  • Relays: 3 common relays for Alarms and Fault
  • Data Logging: USB Host with an option to export data in .csv format
  • Input Power: 110 – 240 V AC, 50/60 Hz
  • Output Power: 24VDC (for transmitters only)
  • Temperature: 0 to 55°C
  • Pressure: Ambient +/- 10%
  • Enclosure: Polycarbonate
  • Weight: 6 kg approx.
  • Dimensions: L=400mm, W=132mm, D=300mm
